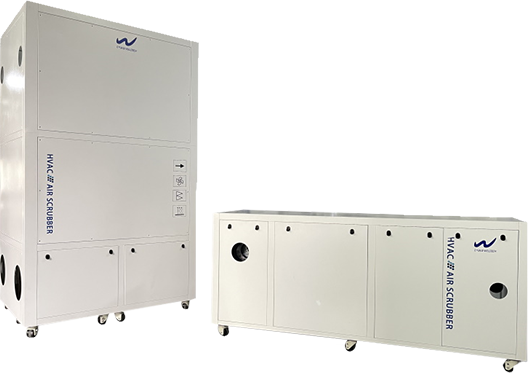

AHU AIR SCURBBER

GREEN BUILDING ENERGY SAVING

AHU Energy Saving Design

By processing the CO2 in the AHU, the fresh air volume is reduced by 70%, the load of the chiller is directly reduced, and the energy saving effect is directly achieved。

Large energy consumers in commercial buildings

The building industry accounts for nearly 40% of global carbon emissions, and air-conditioning systems are among the largest consumers of energy.
The devices that use the most energy include

chiller

heating coil

Carbon peaking, carbon neutrality - building energy saving and consumption reduction

Building energy conservation and consumption reduction is the general trend and an important goal of the "2030 Green Building" Plan"

Carbon Peak

Carbon Neutral

AHU system - Tranditional method

In the operation of commercial buildings, harmful gases such as CO2, benzene, formaldehyde, PM2.5, VOCs and viruses will continue to accumulate indoors over time……
In order to solve the problem of indoor air quality, commercial buildings use fresh air systems to "dilute" indoor polluted gases by replacing outdoor air。

Bring in fresh air

Building 1-2 hours, change air 7-10 times

How to achieve energy consumption of AHU system

The only reliable and energy-saving solution is to install the "Welltech" AHU air scrubber

Integrating AHU air scrubber, it increases the re-use of return air volume

Significantly reduce the intake of fresh air

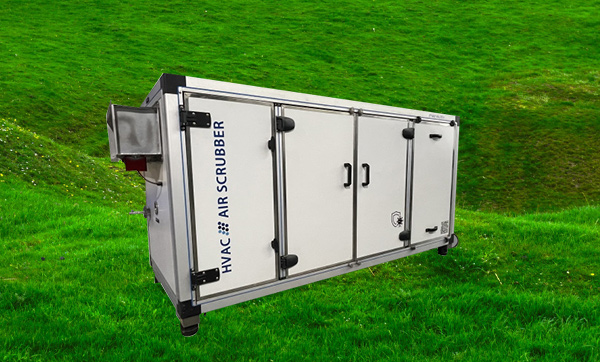

Install AHU air scrubber and build-in with the AHU or connect externally

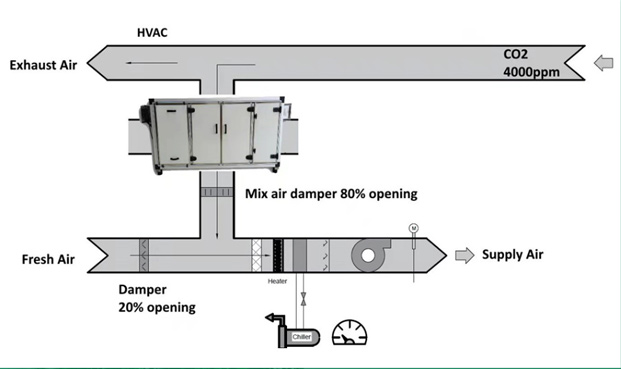

Mix air damper is 80% opening


The only way to absorb CO2 in RAD

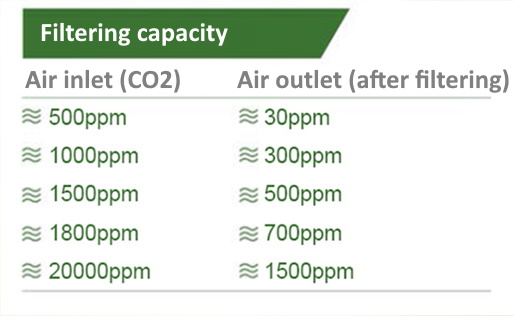

1800ppm => 700ppm

Reducing the fresh air intake as the CO2 level is improved

Real Green Product

Real Save Energy

Reduce fresh air volume

Reduce chiller usage

Reduce AHU maintenance costs

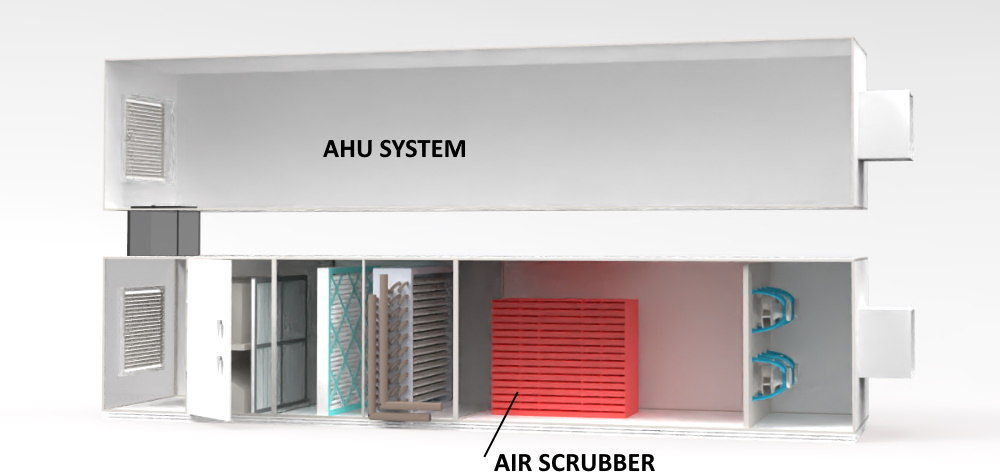

3D diagram with AHU system

AHU increase the function of absorbing CO2

Regenerative adsorption CO2

About the AHU internal circulation flow increase energy saving system,
please contact us
